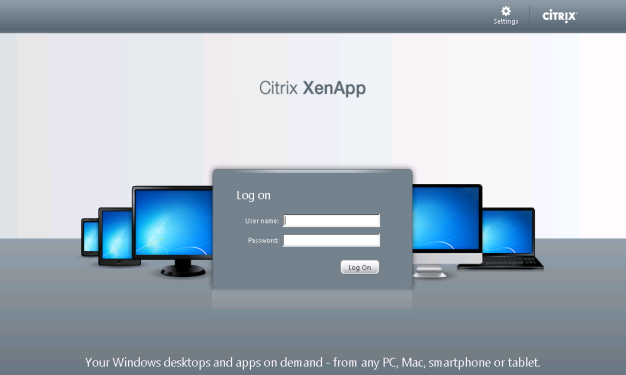

Citrix does not make it easy to deploy Citrix WebInterface 5.4 on Windows Server 2012. However, there is a confirmed working method and this post will guide you through the configuration.

Prepare your Windows Server 2012

Install the following roles and features:

  • .NET Framework 3.5 Features (you need access to the Windows installation source – because of the Feature on Demand setup option)
  • Web Server (IIS) with sub-components
    • Application Development
      • ASP
      • ASP.NET 3.5
  • Management Tools with sub-components
      • IIS 6 Management Compatibility
      • IIS 6 Metabase Compatibility

Install Citrix WebInterface 5.4 and create mmc.exe.config

First, install Microsoft Visual J# from the XenApp 6.5 installation media (located in `\Support\JSharp20_SE\vjredist64.exe`)

After that you are able to install Citrix WebInterface 5.4 from the XenApp installation media (located in `\Web Interface\Webinterface.exe`)

After the installation is completed you can now open the Citrix WebInterface Management Console. Because of an issue you are not able to create a new Site – this point is not shown in the action pane nor in the context menu.

You can (temporarily) work around this issue by creating a text file named `mmc.exe.config` in `%WinDir%\SYSWOW64` with this content (ANSI-coded):
“`
<?xml version =”1.0″?>
<configuration>
<startup>
<requiredRuntime version=”v2.0.50727″/>
<supportedRuntime version=”v2.0.50727″/>
</startup>
</configuration>
“`
Afterwards you can start the Citrix WebInterface Management Console again and create / manage sites. Be sure that this modification of `mmc.exe.config` can conflict other tools (in this case rename `mmc.exe.config` to `_mmc.exe.config`).

Configure CitrixWebInterface 5.4.0 AppPool in IIS

If you try to access a new WebInterface site you will receive the following error message:

404 – File or directory not found (site: `\Citrix\XenApp\auth\silentDetection.aspx`)

You can fix this for all sites on this server by changing the .NET Framework version for the Citrix application pool:

  • Open Information Manager Service (IIS) Manager
  • Open your server
  • Open Application Pools
  • Edit Basic Settings on CitrixWebInterface 5.4.0 AppPool
  • Choose .NET Framework Version v2.0.50727

Source credit:
sepago.de
